Compact Air Conditioning Unit for Boat – Compact 7

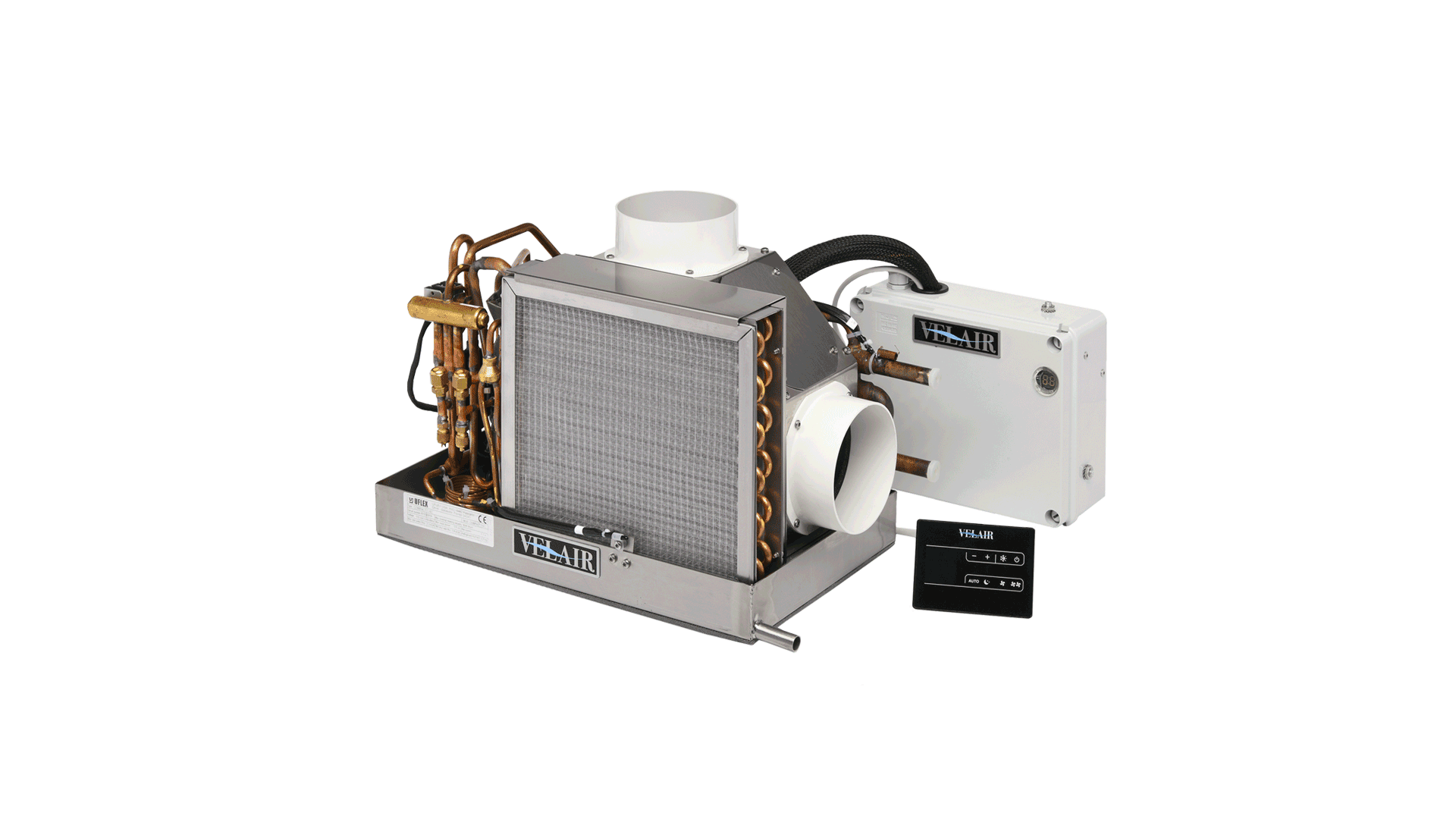

#html-body [data-pb-style=CPWXDFK]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}<p>In order to have a solution even when spaces are minimal, VELAIR introduces Compact 7, the super-compact and self-contained air conditioning unit that is just 43cm in length and 26cm in width and develops 7000 BTU/h of cooling power.<br>7000 BTU model is built with a stainless steel tray and fan body, with the possibility to have up to 3 air outlets.</p>
<p><strong>Boat air conditioning is easy to install:</strong><br>With its compact dimensions and low weight, the air conditioning unit Compact 7 can be installed on all types of boats.<br>The Compact 7 can be installed with 2 or 3 air outputs, 100 mm diameter, without the need to use any T or Y additional dividers</p>
<p>&nbsp;</p>

<table width=”99%”>
<tbody>
<tr>
<td width=”49%”>
<p><strong>Cooling capacity</strong></p>
</td>
<td width=”49%”>
<p>7000 BTU/H</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Power supply Voltage</strong></p>
</td>
<td width=”49%”>
<p>230 V – 50 HZ (ALSO AVAILABLE IN 115V – 60 HZ)</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Cooling power consumption</strong></p>
</td>
<td width=”49%”>
<p>3,0 A</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Protection</strong></p>
</td>
<td width=”49%”>
<p>10 A</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Wire size (minimum)</strong></p>
</td>
<td width=”49%”>
<p>2,5 MM2</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Maximum airflow</strong></p>
</td>
<td width=”49%”>
<p>350 M3/H</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Flange diameter</strong></p>
</td>
<td width=”49%”>
<p>2X 100 MM</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Maximum opening for return air grill</strong></p>
</td>
<td width=”49%”>
<p>360 CM2</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Minimum opening for supply air grill (rec)</strong></p>
</td>
<td width=”49%”>
<p>150 CM2</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Seawater minimum flow rate</strong></p>
</td>
<td width=”49%”>
<p>8 L/MIN</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Control panel</strong></p>
</td>
<td width=”49%”>
<p>WALL-MOUNTED TOUCH CONTROL</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Wifi remote control via smartphone</strong></p>
</td>
<td width=”49%”>
<p>YES</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Dimensions mm (“) WxHxD</strong></p>
</td>
<td width=”49%”>
<p>433X280X260 (17.1X11X10.2)</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p><strong>Weight kg (lbs)</strong></p>
</td>
<td width=”49%”>
<p>23 (50.7)</p>
</td>
</tr>
</tbody>
</table>

<table>
<tbody>
<tr>
<td width=”301″>
<p> </p>
</td>
<td width=”301″>
<p><strong>COMPACT 7</strong></p>
</td>
</tr>
<tr>
<td width=”301″>
<p>SKU</p>
</td>
<td width=”301″>
<p>20379UW</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Cooling capacity</p>
</td>
<td width=”301″>
<p>7000 BTU/h</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Power supply Voltage</p>
</td>
<td width=”301″>
<p>230 v – 50 Hz ; 115V – 60 Hz</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Cooling power consumption</p>
</td>
<td width=”301″>
<p>3,0 A</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Protection</p>
</td>
<td width=”301″>
<p>10 A</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Wire size (minimum)</p>
</td>
<td width=”301″>
<p>2,5 mm2</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Maximum air flow</p>
</td>
<td width=”301″>
<p>350 m3/h</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Flange diameter</p>
</td>
<td width=”301″>
<p>2x 100 mm</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Maximum opening for return air grill</p>
</td>
<td width=”301″>
<p>360 cm2</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Minimum opening for supply air grill (rec)</p>
</td>
<td width=”301″>
<p>150 cm2</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Seawater minimum flow rate</p>
</td>
<td width=”301″>
<p>8 l/min</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Dimensions mm (“) WxHxD</p>
</td>
<td width=”301″>
<p>433x280x260 (17.1x11x10.2)</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Weight kg (lbs)</p>
</td>
<td width=”301”>
<p>23 (50.7)</p>
</td>
</tr>
</tbody>
</table>
