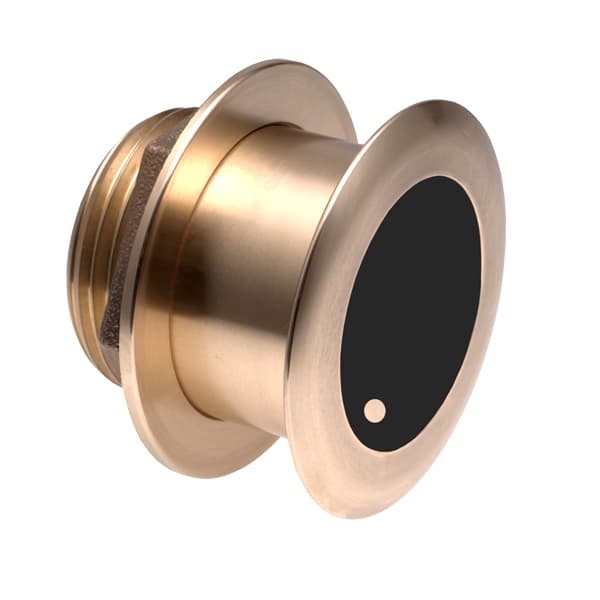

B175L Bronze Low profile Thru-hull chirp 1kw transducer Low CHIRPS 40 kHz – 60 kHz

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as centre consoles. The low-frequency band is a deep-water performer delivering excellent coverage and tracking. The B175L transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.
The B175L transmits across the following bandwidth:

Low frequency 40 to 60 kHz

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
The B175L is available in three Tilted Element models:

Fixed 20° tilted version for 16° to 24° hull deadrise
Fixed 12° tilted version for 8° to 15° hull deadrise
Fixed 0° tilted version for 0° to 7° hull deadrise
