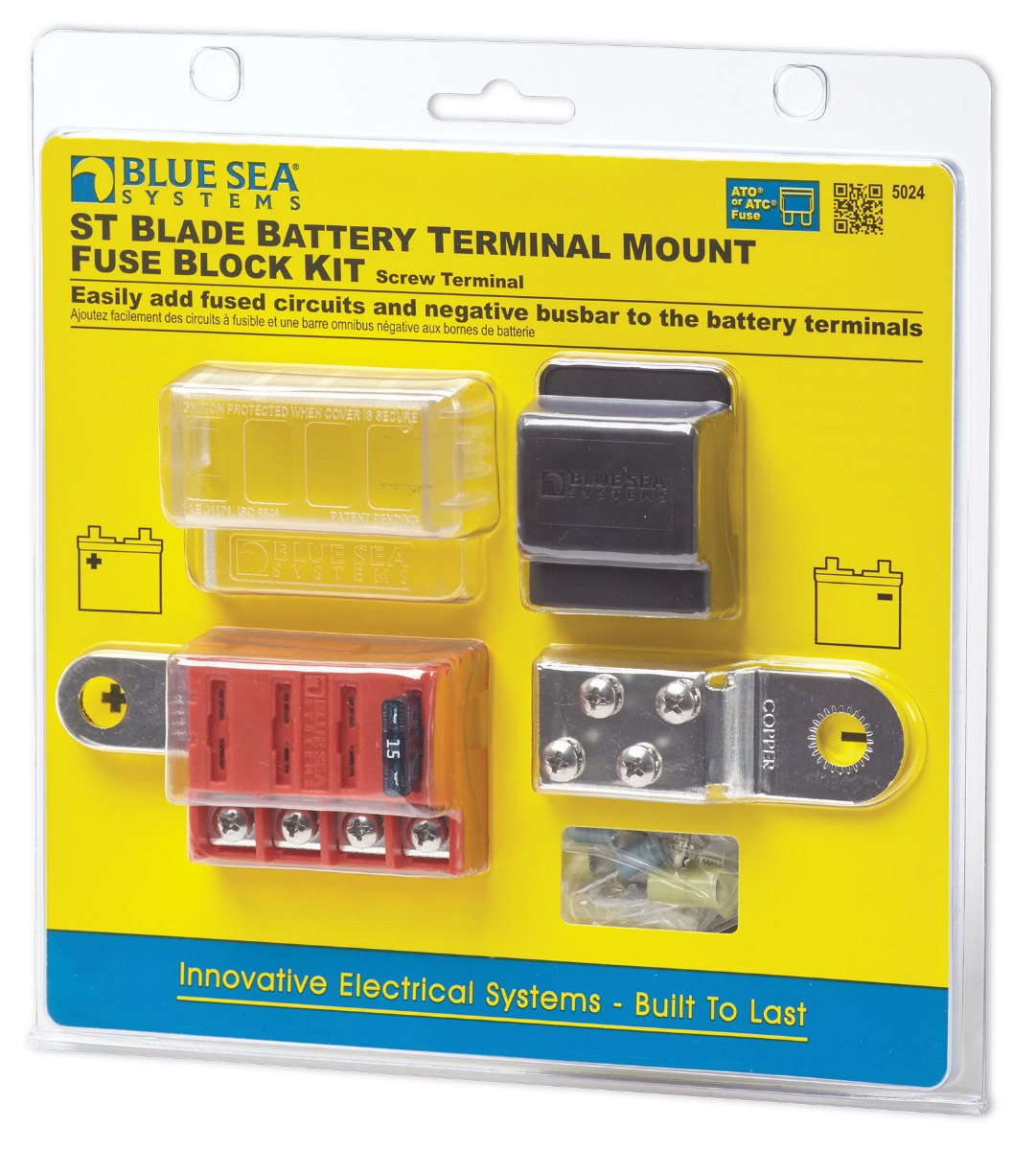

ST Blade Battery Terminal Mount Fuse Block Kit

Easily add 4 fused circuits to the terminal of a battery
Provides power to new accessories in your boat or vehicle.

Mounts on the battery terminal stud
Screw terminals for securing wires
Nylon insulated ring terminals included for each screw terminal
Accepts small format circuit labels
Insulating cover meets ABYC/USCG insulation requirements
Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Includes a 4-circuit negative busbar
Includes write on labels
Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specifications

Circuits

4

Maximum Amperage

100A per block 30A per circuit

Maximum Voltage

32V DC

Bus Material

Tin-Plater Copper C11000

Mounting Hole

3/8″ (M10) Stud

Screw Terminal Torque

18 in-lb (2.03 Nm)

Screw Terminal Type

#8-32

Weight

0.50lb (0.23 kg)
