SOLIX 10 CHIRP MEGA DI+ G2 CHO

OVERVIEW

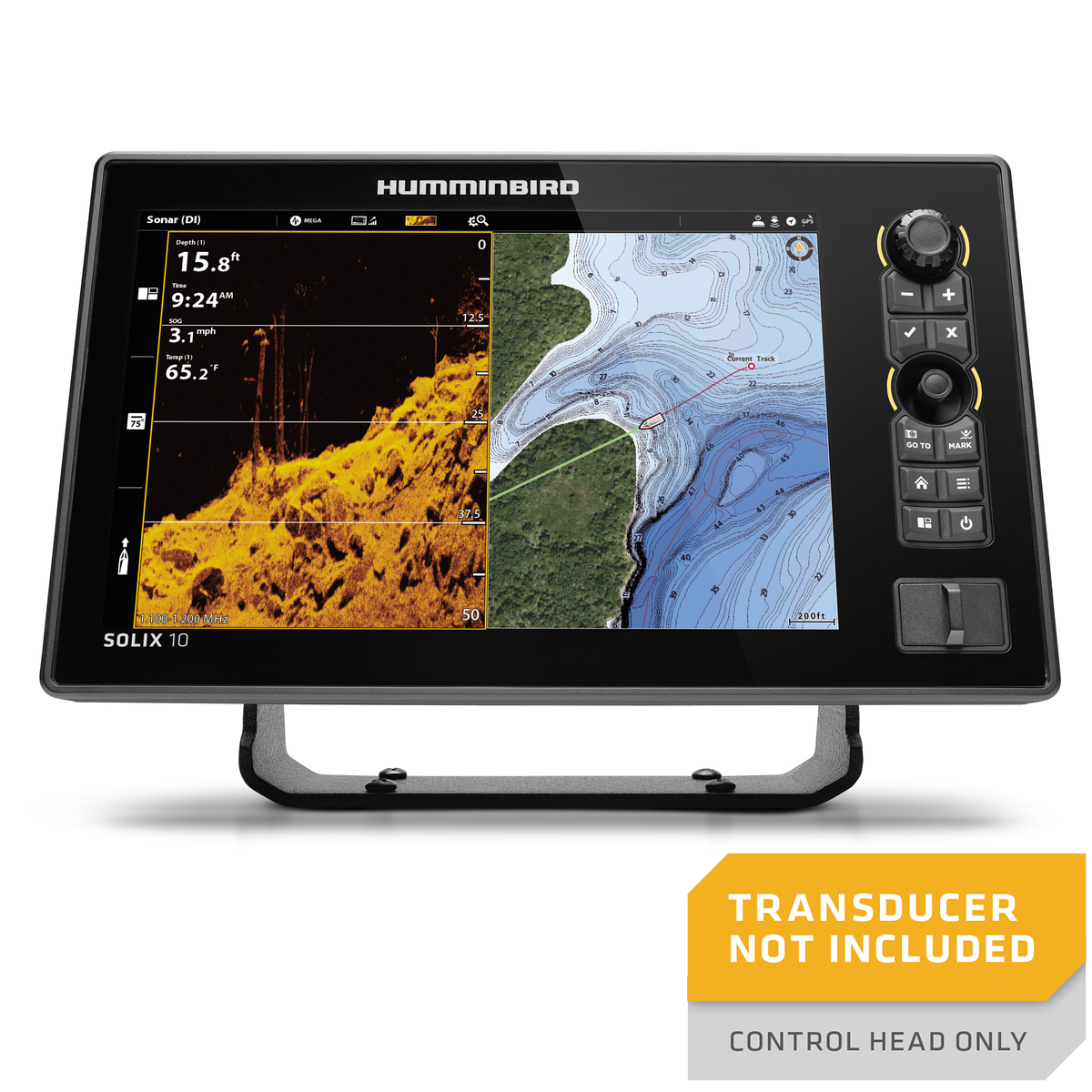

The SOLIX 10 CHIRP MEGA DI+ G2 CHO fish finder features a large 10.1″ Cross Touch Interface display with LED backlight, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS chartplotting, Humminbird Basemap, Wi-Fi, Bluetooth, Ethernet and NMEA 2000® capabilities, as well as AutoChart Live with depth, vegetation and bottom hardness mapping. This is a Control Head Only unit—Transducer is not included. Model is compatible with Minn Kota Built-in MEGA DI trolling motors.
FEATURES

PLEASE NOTE: This is a Control Head Only unit—Transducer is not included. An accessory transducer of choice can be purchased to suit your install and application needs. This model will also connect directly to Built-in MEGA DI transducers, found on select Minn Kota trolling motors (no adapter required).

NEW MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200 feet below your boat. You’ll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar.

Dual Spectrum CHIRP: Before you cast, know what’s down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.

SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations – all at the push of a button.

Cross Touch Interface: Control your fish finder using the touchscreen or the keypad—it’s up to you. Cross Touch lets you quickly and intuitively access technologies on your terms, no matter your situation and conditions. Any menu navigation you can do on the touchscreen can also be done on the keypad and vice versa.

Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.

AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.

NMEA 2000® Networking: Connect SOLIX to a NMEA 2000 backbone to gather a complete view of your vessel, including available information like engine gauges, fuel information, and NMEA 2000 connected accessories. Share this information to any other Humminbird unit onboard that is connected via an Ethernet network.

Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.

Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).

LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you’ll have all the tools you need to make every moment count.

Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.

Includes power cable, gimbal mounting bracket and unit cover (transducer sold separately).

SPECS

Series

SOLIX

Display Size – Diagonal

10.1″

Display Pixel Matrix

1280H x 800V

Sonar-Standard

Dual Spectrum CHIRP, MEGA Down Imaging+

Sonar-Coverage

20°, 42° & 60° @ -10dB

Sonar-Optional

50 kHz, 50/Low Airmar CHIRP and SM3000

CHIRP – Frequencies Supported

Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Optional Deepwater (28-250 kHz), Wide Mode (130-250 kHz)

Sonar-Frequencies Supported

50/83/200/455/800 kHz & 1.2 MHz

Depth-Sonar

1,200 ft (standard transducer), 5,000 ft (optional Airmar CHIRP SM3000)

CHIRP – Imaging-Frequencies Supported

455 kHz DI+ (435-535 kHz), 800 kHz DI+ (800-860 kHz), MEGA DI+ (1100-1200 kHz)

Depth-Down Imaging

125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)

Interface

Touch Screen

Features

Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Touch Screen, Wi-Fi

Memory Card Slot

Dual Micro SD

Compatible With

360 Imaging, AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon, NMEA 2000, Radar

Power Draw

2.4 Amps

Power Input

10.8-20 VDC

Power Output Peak-to-Peak

8000 Watts

Power Output RMS

1000 Watts

Screen Snap Shot

Included

Sonar Recording

Included

Mount-Standard

Gimbal

Mount-Standard Size

11.81″ W x 7.89″ H x 4.45″ D

Mount-Optional

In-Dash Mounting Kit

Mount-Optional Size

11.81″ W x 7.06″ H x 1.52″ D

Transducer Included

N/A

Transducer Mount Location

N/A

GPS Chartplotting

Included

GPS Receiver

Internal

GPS Trackplotting

Included

Waypoints, Routes, Tracks/Points

10,000, 50, 50/20,000

360 Imaging Compatibility

Yes

Humminbird Basemap

Included

LakeMaster Compatibility

Yes

Minn Kota i-Pilot Link Compatibility

Yes

Minn Kota Talon Shallow Water Anchor Compatibility

Yes

Navionics Gold/HotMaps Compatibility

Yes

Navionics Platinum + Compatibility

Yes

Platinum Compatibility

Yes

Radar Compatibility

Yes

5-Port Ethernet Switch Compatibility

Yes

AIS Compatibility

Optional

Heading Sensor GPS Compatibility

Yes

NMEA2000

Included

Target Separation

2.5″

Upgradable Software

Yes

View Preset Keys

No

X-Press Menu System

No

Custom Digital Readout

Yes

Custom View Selections

Yes

Display Colors Grayscale

16-Bit

Display Size

8″ – 10″

Display Type

Color TFT

Speed

Included

Temperature

Built In

Temperature Alarm

Yes

Temperature Graph

Yes

UPC

0082324053849
