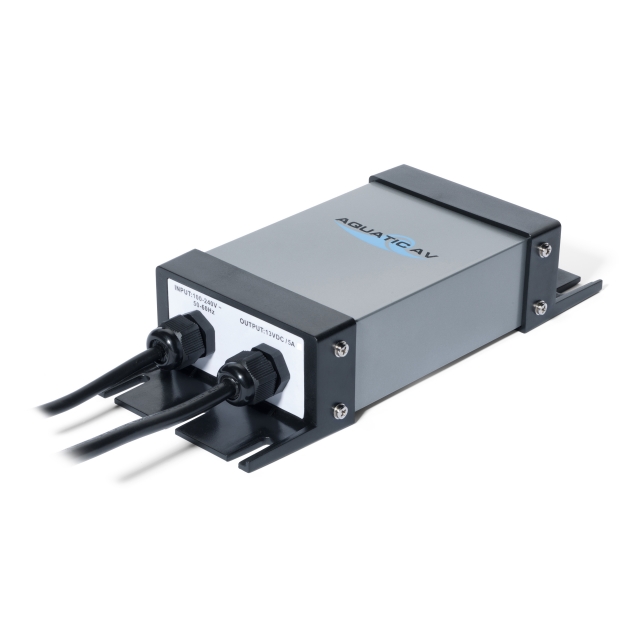

PST-1 110/240V AC Female Spade Connectors

If you’re looking for a reliable dual input power supply, look no further than the PST-1 110/240V AC Female Spade Connectors. With a power factor of at least 0.9 and a power efficiency of 87% or greater, this highly durable power supply is a great choice for any environment where water may pose a hazard to traditional equipment. The PST-1 is also built for durability against overvoltages, over-currents, and over temperatures.


Type:
Regulated switching mode power supply (≤10A, 13V DC)

Waterproof:
Yes – IPx5

Input Voltage:
100-240V AC (power input auto sensing/switching)

Input Frequency:
50/60 Hz

Efficiency:
≥87%

Power Consumption:
≤0.5W (at 240V AC)

Power Factor:
≥0.9 (at full load)

Short Circuit Protection:
Continuous

Output Plug:
2x female spade connectors (+13V DC (red), Neg (black))

Output Voltage:
13V DC regulated

Output Current:
5A

Ripple & Noise:
260mV (max)

Voltage Accuracy:
±5%

Line Regulation:
±5%

Load Regulation
±5%

Operating Temperature:
-20°C – 70°C

Storage Temperature:
-20°C – 85°C

Dimensions:
49 x 234 x 110 mm

Certifications:
UL1563 class2, UL1310, CSA, CE

Additional Features:
Over Voltage Protection, Over Current Protection


Over Temperature Protection
