i16 VSD SMART – VSD Inverter Air Conditioning Unit

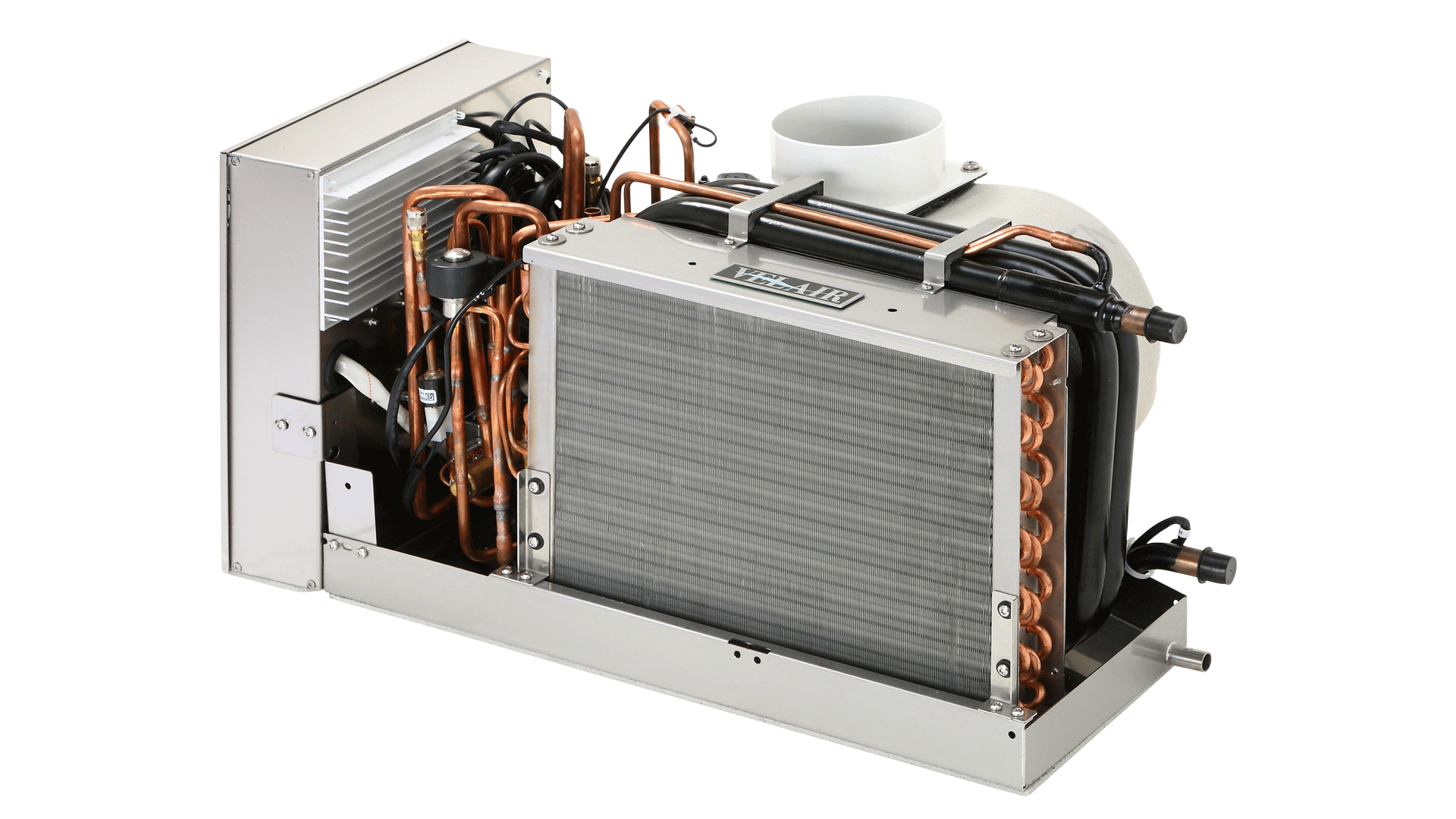

<h3><strong>Velair i16 VSD SMART</strong> Self-contained-VSD air conditioner provides the best of the existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivered cooling power (Variable Speed Drive); reverse blade brushless fan; electronic expansion valve; R32 refrigerant.</h3>
<p>The compressor continuously changes its running speed depending on the ambient and set temperature. The compressor operates at maximum power to cool rapidly the cabins, but reaching the set temperature reduces the power and electric consumption. In this way, it maintains the optimal comfort level with minimum consumption. The inverter works between 20 and 100 Hz.</p>
<p>Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.</p>

<table width=”99%”>
<tbody>
<tr>
<td width=”49%”>
<p>Inverter VSD – Variable Speed Drive</p>
</td>
<td width=”49%”>
<p>YES</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Voltage/Phase/Cycle</p>
</td>
<td width=”49%”>
<p>1 PH 230V – 50/60 HZ; 1 PH 115V – 50/60 HZ</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Cooling capacity range</p>
</td>
<td width=”49%”>
<p>6.000 – 16.000 BTU/H</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Heat pump</p>
</td>
<td width=”49%”>
<p>YES</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Maximum input power cooling</p>
</td>
<td width=”49%”>
<p>0,93 KW / 4,1 A</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Input power ECO mode</p>
</td>
<td width=”49%”>
<p>0,31 KW / 1,35 A</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Min seawater flow</p>
</td>
<td width=”49%”>
<p>15 L/MIN</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Maximum air flow</p>
</td>
<td width=”49%”>
<p>550 M3/H</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Air exit duct (for max capacity)</p>
</td>
<td width=”49%”>
<p>1 X Ø 125 MM – 1 X Ø 4.9”</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Min. opening for return air grill</p>
</td>
<td width=”49%”>
<p>600 CM2</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Min. opening for supply air grill</p>
</td>
<td width=”49%”>
<p>300 CM2</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Refrigerant</p>
</td>
<td width=”49%”>
<p>R32</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Control panel cable length</p>
</td>
<td width=”49%”>
<p>8 M</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Width – including electrical box</p>
</td>
<td width=”49%”>
<p>650 MM – 25.6”</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Height</p>
</td>
<td width=”49%”>
<p>330 MM – 13”</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Depth</p>
</td>
<td width=”49%”>
<p>355 MM – 14”</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Weight</p>
</td>
<td width=”49%”>
<p>28 KG – 61.7 LBS</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Working limits: SW summer mode</p>
</td>
<td width=”49%”>
<p>&gt; +5°C/+41°F</p>
</td>
</tr>
<tr>
<td width=”49%”>
<p>Working limits: SW winter mode</p>
</td>
<td width=”49%”>
<p>&lt; +40°C/+104°F</p>
</td>
</tr>
</tbody>
</table>

<table>
<tbody>
<tr>
<td width=”301″>
<p> </p>
</td>
<td width=”301″>
<p>COMPACT i16 VSD SMART</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Voltage/Phase/Cycle</p>
</td>
<td width=”301″>
<p>1 PH 230V – 50/60 Hz; 1 PH 150V – 50/60 Hz</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Cooling capacity</p>
</td>
<td width=”301″>
<p><br />6.000 – 16.000 BTU/h</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Maximum input power cooling</p>
</td>
<td width=”301″>
<p>4.1 A @230V; 8.5 A @115V</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Protection</p>
</td>
<td width=”301″>
<p>10 A @230V/115V</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Wire size (minimum)</p>
</td>
<td width=”301″>
<p><br />2,5 mm2 (230V); 4 mm2 (115V);</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Maximum airflow</p>
</td>
<td width=”301″>
<p>550 m3/h</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Min. opening for return air grill</p>
</td>
<td width=”301″>
<p><br />600 cm2</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Min. opening for supply air grill</p>
</td>
<td width=”301″>
<p>300 cm2</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Min. seawater flow</p>
</td>
<td width=”301″>
<p>15 l/min</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Dimensions mm (“) LxHxP (including the electrical box)</p>
</td>
<td width=”301″>
<p>650x330x355(25.6x13x14)</p>
</td>
</tr>
<tr>
<td width=”301″>
<p>Weight kg (lbs)</p>
</td>
<td width=”301”>
<p>28 (61.7)</p>
</td>
</tr>
</tbody>
</table>
