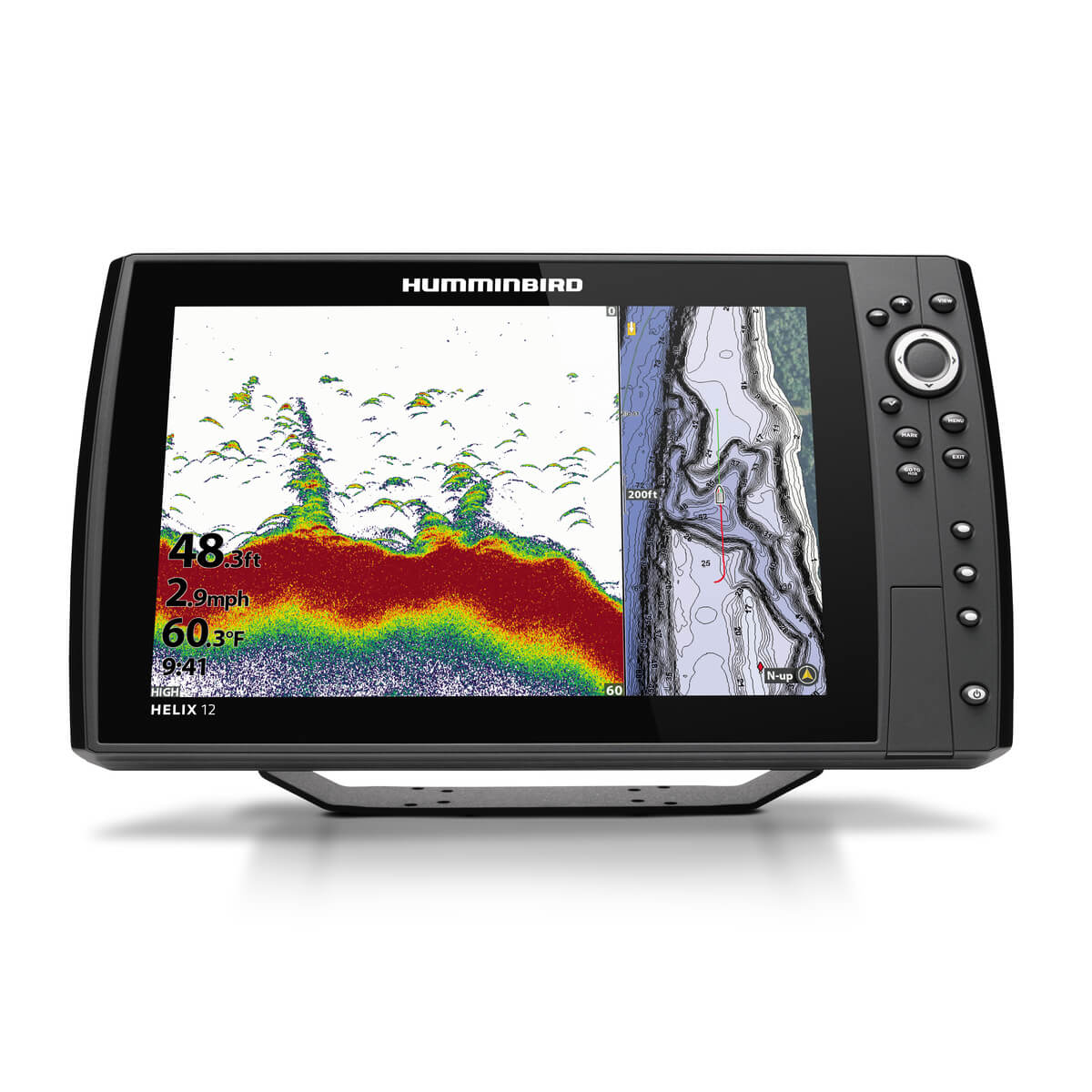

HELIX 12 CHIRP GPS G3N

Dual Spectrum CHIRP: Before you cast, know what’s down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations – all at the push of a button.
Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.
Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you’ll have all the tools you need to make every moment count.
Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
Includes transducer and mounting hardware, power cable, gimbal mounting bracket and unit cover.
2-Year Limited Warranty

Item Number
410900-1

Series
HELIX

Display Size – Diagonal
12.1″

Display Pixel Matrix
1280H x 800V ft

Sonar-Standard
Dual Spectrum CHIRP

Sonar-Coverage
20°, 42° & 60° @ -10dB

Sonar-Optional
50 kHz, 50/Low Airmar CHIRP

CHIRP – Frequencies Supported
Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)

Sonar-Frequencies Supported
50/80/200 kHz

Depth-Sonar
1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

Interface
Keypad Control

Features
Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Dual Spectrum CHIRP, Networking

Memory Card Slot
Dual SD

Compatible With
AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, One-Boat Network, Radar

Power Draw
1.75 Amps

Power Input
10.8-20 VDC

Power Output Peak-to-Peak
8000 Watts

Power Output RMS
1000 Watts

Screen Snap Shot
Included

Sonar Recording
Included

Mount-Standard
Gimbal

Mount-Standard Size
14.86″ W x 8.83″ H x 4.25″ D

Mount-Optional Size
14.86″ W x 8.52″ H x 1.36″ D

Transducer Mount Location
Transom

GPS Chartplotting
Included

GPS Trackplotting
Included

LakeMaster Compatibility
Yes

Coast Master Compatibility
Yes

Navionics Gold/HotMaps Compatibility
Yes

Navionics Platinum + Compatibility
Yes

Platinum Compatibility
Yes

Heading Sensor GPS Compatibility
Yes

Upgradable Software
Yes

View Preset Keys
Yes

X-Press Menu System
Yes

Custom Digital Readout
Yes

Custom View Selections
Yes

Display Colors Grayscale
16-Bit

Display Size
11″ – 15″

Speed
Included

Temperature
Built In

Temperature Alarm
Yes

Temperature Graph
Yes

Transducer Included
XNT 9 HW T
