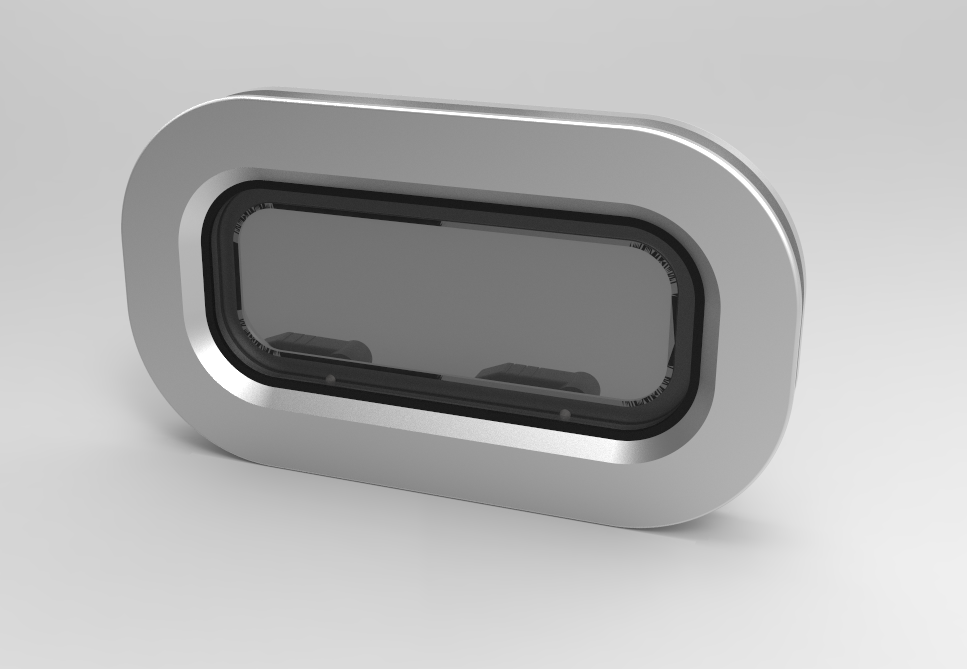

Cristal Range Portlights-23.10R-16 – 26 mm

Model

Weight (Kg)

Cut-out dimensions (mm)

Overall dimensions (mm)

Cut-out radius (mm)

Acrylic thickness (mm)

23.10R

1.8

281 x 151

303 x 173

62

8

33.13

2.4

380 x 180

402 x 202

90

8

33.13R

2.5

380 x 180

402 x 202

62

8

43.18

3.0

480 x 230

502 x 252

115

8

43.18R

3.5

480 x 230

502 x 252

62

8


Closing system The quarter-turn handles are fitted by pressure in a ramp fixed on the frame. The adjustable friction device allows the lid to hold in all positions.


Supplied as standard with a grey acrylic glass
Mounting on a flat surface with a ± 0.5 mm tolerance
Approved in CE areas I, IIb, III and IV for 23.10R, 33.13 and 33.13R models and in areas IIb, III and IV for 43.18 and 43.18R models
