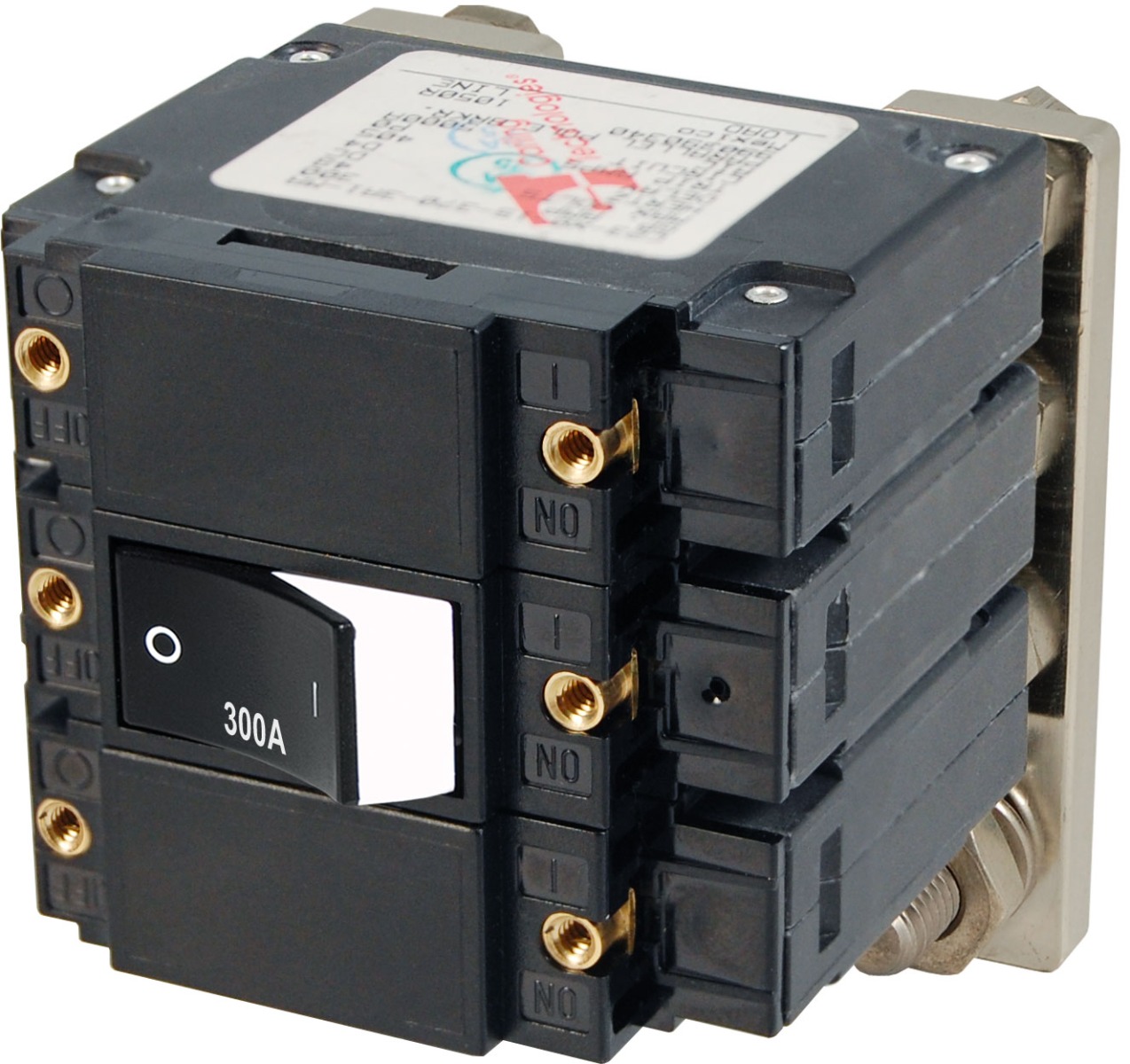

C-Series Flat Rocker Circuit Breaker – Triple Pole 300A

#html-body [data-pb-style=PFMW2FE]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}<table id=”specifications” class=”product_table masonry-brick” style=”width: 99.9967%; height: 788.75px;”>
<tbody>
<tr style=”height: 18.75px;”>
<th style=”width: 98.9201%; height: 18.75px;” colspan=”2″>Specifications</th>
</tr>
<tr id=”51″ class=”even” style=”height: 18.75px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 18.75px;”>Amperage</td>
<td class=”spec_value” style=”width: 12.3178%; height: 18.75px;”>300A DC</td>
</tr>
<tr id=”313″ class=”odd” style=”height: 170px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 170px;”>
<p><span style=”font-size: 16px;”>Actuator Style </span></p>
<p><span style=”font-size: 12px;”><em>*resists accidental switching by being flush in the ON position</em></span></p>
</td>
<td class=”spec_value” style=”width: 12.3178%; height: 170px;”>Flat Rocker</td>
</tr>
<tr id=”55″ class=”even” style=”height: 131.25px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 131.25px;”>Poles</td>
<td class=”spec_value” style=”width: 12.3178%; height: 131.25px;”>
<p><span style=”font-size: 16px;”>3 </span></p>
<p><em><span style=”font-size: 12px;”>*Paralleled poles have5/16</span></em></p>
</td>
</tr>
<tr id=”174″ class=”odd” style=”height: 56.25px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 56.25px;”>Maximum Voltage</td>
<td class=”spec_value” style=”width: 12.3178%; height: 56.25px;”>120V AC<br />240V AC<br />48V DC</td>
</tr>
<tr id=”27″ class=”even” style=”height: 56.25px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 56.25px;”>Circuit Breaker Type</td>
<td class=”spec_value” style=”width: 12.3178%; height: 56.25px;”>Magnetic Hydraulic – trip free</td>
</tr>
<tr id=”138″ class=”odd” style=”height: 56.25px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 56.25px;”>Terminal Stud</td>
<td class=”spec_value” style=”width: 12.3178%; height: 56.25px;”>1/4-20 Tin-Plated Brass</td>
</tr>
<tr id=”8″ class=”even” style=”height: 37.5px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 37.5px;”>Terminal Stud Torque</td>
<td class=”spec_value” style=”width: 12.3178%; height: 37.5px;”>35 in-lb (3.95 Nm)</td>
</tr>
<tr id=”239″ class=”odd” style=”height: 56.25px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 56.25px;”>
<p><span style=”font-size: 16px;”>Interrupt Capacity </span></p>
<p><span style=”font-size: 12px;”><em>*The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage </em></span></p>
</td>
<td class=”spec_value” style=”width: 12.3178%; height: 56.25px;”>5000A @ 48V DC</td>
</tr>
<tr id=”290″ class=”even” style=”height: 18.75px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 18.75px;”>Minimum Operating Temperature</td>
<td class=”spec_value” style=”width: 12.3178%; height: 18.75px;”>-40° C</td>
</tr>
<tr id=”291″ class=”odd” style=”height: 18.75px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 18.75px;”>Maximum Operating Temperature</td>
<td class=”spec_value” style=”width: 12.3178%; height: 18.75px;”>85° C</td>
</tr>
<tr id=”31″ class=”even” style=”height: 56.25px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 56.25px;”>Mounting Screw</td>
<td class=”spec_value” style=”width: 12.3178%; height: 56.25px;”>6-32 Stainless Steel</td>
</tr>
<tr id=”244″ class=”odd” style=”height: 37.5px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 37.5px;”>Mounting Screw Torque</td>
<td class=”spec_value” style=”width: 12.3178%; height: 37.5px;”>6 in-lb (0.68 Nm)</td>
</tr>
<tr id=”201″ class=”even” style=”height: 18.75px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 18.75px;”>Switching Cycles</td>
<td class=”spec_value” style=”width: 12.3178%; height: 18.75px;”>10000</td>
</tr>
<tr id=”16″ class=”odd” style=”height: 37.5px;”>
<td class=”spec_title” style=”width: 86.6022%; height: 37.5px;”>Weight</td>
<td class=”spec_value” style=”width: 12.3178%; height: 37.5px;”>0.93lb (0.42 kg)</td>
</tr>
</tbody>
</table>
