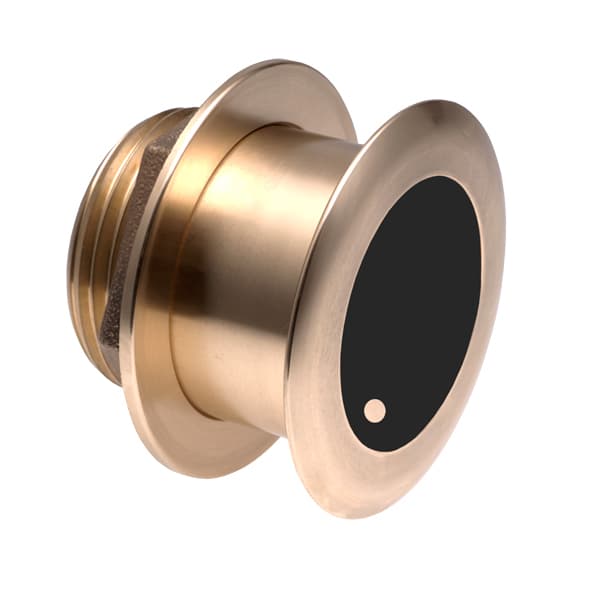

B175HW Wide Beam Bronze Low profile Thru-hull chirp 1kw transducer 150-250kHz

SKU: 41-699-2-01

Get more coverage under your boat with Airmar’s unique wide beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500′).
Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175HW is available in three Tilted Element models:

Fixed 20° tilted version for 16° to 24° hull deadrise
Fixed 12° tilted version for 8° to 15° hull deadrise
Fixed 0° tilted version for 0° to 7° hull deadrise

Original price was: £2,450.14.Current price is: £2,041.78.

Out of stock

Depth and fast-response water-temperature sensor
1 kW with a maximum depth of 152 m (500′)
High frequency: 150 to 250 kHz

Constant 25° beam

100 kHz of total bandwidth from one transducer
Covers a popular fishing frequency of 200 kHz plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column
Low-profile, thru-hull housing provides good resolution at speed when installed properly
Bronze housing for use on stepped, planing or displacement hull
Exclusive Xducer ID® technology

Specifications

Weight: 2.7 kg (6 lb.)
Recommended Boat Length: Up to 11 m (36’)
Hull Material: Fiberglass or wood
Hull Deadrise: Up to 24°
Acoustic Window: Urethane
Hole Diameter: 95 mm or 3-3/4″
Transducer Element: One internal ceramic assembly
